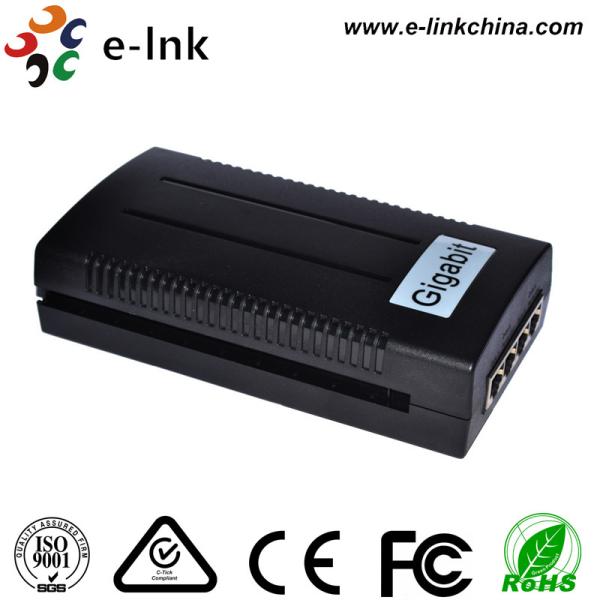

Fast Speed Dual Port Power Over Ethernet Injectors With 48V 15.4w Output

  • 1
  • 2

Brand Name : E-link

Model Number : LNK-POE202

Certification : CE/FCC/Rohs

Place of Origin : Guangdong, China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000pcs Per Month

Delivery Time : 4-6 days

Packaging Details : Standard export package

Transmission rate : 10/100Mbps

Output Voltage : 48VDC

PoE Power : 15.4W

Interface : 4 x RJ45

Input Voltage : 90-240V AC

Dimension : 170x98x42mm

Contact Now

Fast Ethernet Dual Port POE injector with 48V 15.4w output

Model: LNK-POE202

Overview

The LNK-POE202/LNK-POE302 Power over Ethernet (PoE) adapter is designed to supply operational power to surveillance cameras and wireless LAN devices such as access points, bridges and routers. It enables power current to travel on the Ethernet network cable, thus eliminates the need to directly connect a power supply to the wireless LAN device. Power and Data are combined on a single cable, thus eliminating the need for extra power lines and also reducing installation costs and manpower.

Features

  • Up to 15.4W/25.5W of PoE Power
  • Fully IEEE802.3af/IEEE802.3at compliant
  • Supports 10/100M or 10/100/1000M LAN environment
  • Plug & Play
  • No configuration required
  • Reduced Installation cost
  • Safe and Reliable Power to WLAN Access Points
  • Automatic Detection and Protection of Non–standard Ethernet Terminals

Technical Parameters

Parameter Specifications
Features Conforms to IEEE802.3af standard RJ-45
Data Input Interface RJ-45 10/100Base-TX
Output Port Power Cable Included
Data Rate 10/100Mbps
Input Power AC100-240V
Output Power 15.4W Max IEEE802.3af
Wiring Data provide over pairs 1/2(+) and 3/6(-)
Power over spare pairs 4/5(+) and 7/8(-)
Output type

Single outputa

2*RJ45 connector ---POE

2*RJ45 connector ----LAN
LED Display YES
Operating Temperature 0 to +40°C,
Humidity Max. 95% RH(non-condensing)
Dimension 170*98*42mm (H×D×W)
Weight 250g
Regulatory Approvals
ISO9001
FCC part 15, Class A
Safety: UL 60950-1
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

Application

Fast Speed Dual Port Power Over Ethernet Injectors With 48V 15.4w Output

Fast Speed Dual Port Power Over Ethernet Injectors With 48V 15.4w Output
