EN50155 Industrial 10/100/1000M/2.5G/5G 90W PoE Injector with M12 connector
Industrial 95W PoE++ Injector Overview
The LNK-INJ501-90 is an industrial-grade, 95W PoE injector engineered to deliver ultra-high power
to demanding devices. It supports the latest IEEE 802.3bt (Type 4) and LTPoE++ standards and provides
a substantial 95W output. This allows it to power high-performance equipment such as PTZ cameras

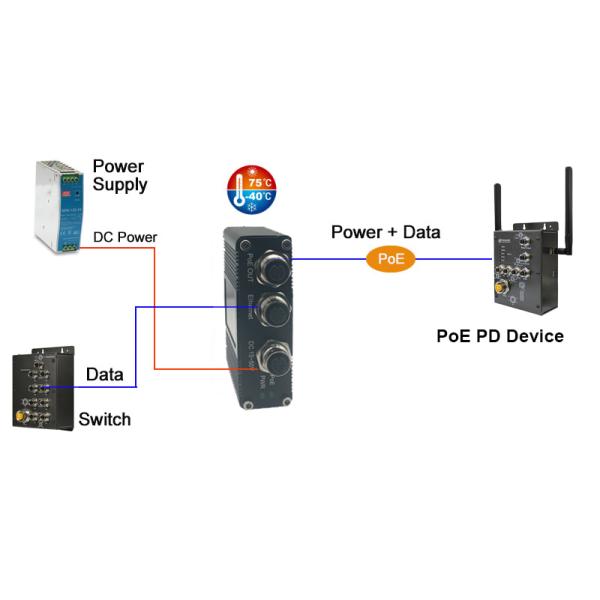

and wireless access points. The LNK-INJ501-90 seamlessly bridges non-PoE network switches to any
PoE device over a 30-meter distance. The data input and PoE output ports robustly support
multi-gigabit speeds ranging from 10 Mbps to 5 Gbps (5 G Base-T), complying with IEEE 802.3ab.
Designed for harsh environments, the LNK-INJ501-90 features a wide 12–48 V DC input range
with an integrated voltage booster to ensure stable and reliable power delivery in industrial and outdoor applications.
Industrial 95W PoE++ Injector Features
- 1x RJ45 Ethernet data input + 1x RJ45 PoE output (Data + Power)
- Supports up to 95W PoE++ Power Sourcing Equipment (PSE)
- Compliant with IEEE 802.3at/bt
- Compatible with 10/100/1000/2.5G/5G Base-TX network speeds
- Comprehensive LED indicators for real-time PoE status and diagnostics
- Wide 12~48V DC power input
- Flexible mounting options: DIN-rail or wall-mount installation
- Rugged industrial design with operating temperature range -40°C to 80°C (-40°F to 176°F)
Industrial 95W PoE++ Injector Technical Indexes
| Ethernet |
| Standards: | 10/100/1000/2.5G/5G BASE-T Ethernet |
| Processing Type: | Forward |
| Half-duplex, Full-duplex |
| Forward Filter Rate: | 7,440,000pps (5Gbps) |
| Cabling: | 10/100/1000/2.5G/5G BASE-T: CAT7 or above |
| Maximum Distance: | CAT7 UTP up to 30m |
| Connector: | 2x RJ45 |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 100W Max. |
| Power over Ethernet: |
| Standard: | IEEE 802.3bt 4-pair Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet |
| Port: | RJ45 |
| Power Pin Assignment | Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-) |
| PoE Budget: | Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC) |
| LED Indicators: |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | IP40 Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Standard Accessories |
| Package Contents | LNK-INJ501-90 |
| User's manual |
| Wall-mount kit |
| DIN-mount kit |
| Regulatory Approvals |
| ISO9001 |
| FCC part 15, Class A |
| EN55022:2006+A1: 2007 Class A |
| Surge Protection: |
| RJ45: 1KV |
| Power: 500V |
| ESD: 4KV/8KV |
Industrial 95W PoE++ Injector Ordering Information
| Model | Description |
| LNK-INJ501-90-M12 | EN50155 Industrial 1-port 10/100/1000M/2.5G/5G 90W M12 PoE Injector 12~48V DC Power Input |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
